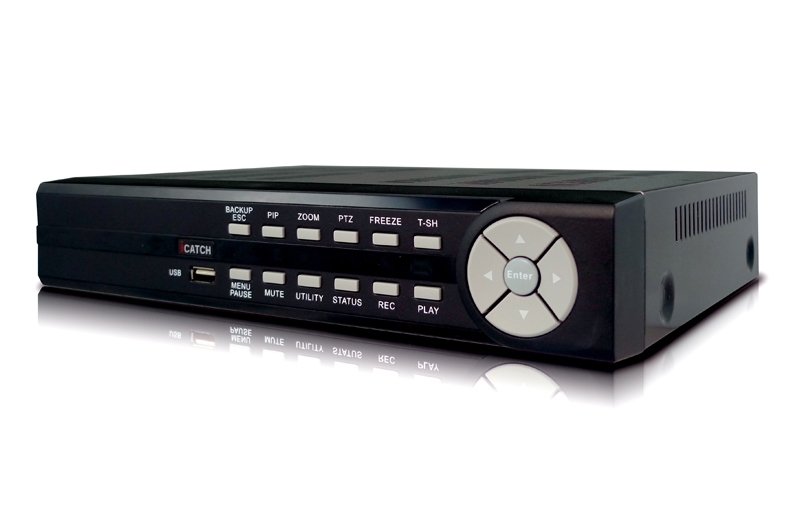

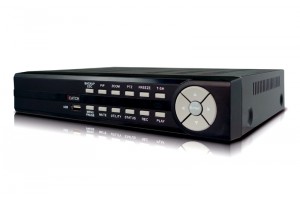

SAIET - DVR SVR-403C-960H
Caratteristiche:
Digital Video Recorder 4ch con supporto risoluzione 960H (16/9)
● Alta risoluzione immagini ● Aspect Ratio Auto Switching 4:3, 16:9 ● Triplo Streaming per Live Display, Playback, e Registrazione ● CMS con supporto mappe grafiche ● Client per sistemi Win and Mac ● App per iOS e Android| Modello | SVR-403C-960H | ||
| Video | Input | 4 BNC | |
| Ouput | 1 HDMI with Audio and 1 VGA ( Max. 1920x1080) 1 Main BNC / 1 SPOT |
||
| Audio | Input | 4 RCA | |
| Output | 2 RCA | ||
| System | Operating System | Embedded Linux OS | |
| Dischi SATA | Max. 1 x SATA Devices (HDDx1) |
||
| External HDD | N/A | ||
| Sensor In (NO, NC) Relay out |
Sensor-in x 4 Relay-out x 1 |
||
| Serial Interface | RS-485 | ||
| USB | USB2.0 x2 | ||
| Dimension ( mm ) | 280(w)x51(h)x203(d) | ||
| Power Rating | DC 12V 2A 24W Adapter 110/220V |
||
| Display | Split Screen | 1, 4, SEQ. | |
| Auto Channel Switching | Switching time : 1 ~ 99 sec | ||
| Mode | Zoom ( Digital x2~ x5 ), PIP, Auto SEQ. | ||
| Registrazione | Compression | H.264 Main Profile | |
| Dual Stream Resolution (Pixel) | Main (Recording) |
704x480, 704x240, 352X240 (NTSC) / 704x576, 704x288, 352x288 (PAL) 944x480, 704x480 , 472X240 (NTSC 960H) / 944x576, 704x576, 472x288 (PAL 960H) |
|
| Sub (Network) |
352x240, 176x120 (NTSC) / 352x288, 176x144 (PAL) 472x240, 236x120 (NTSC 960H) / 472x288, 236x144 (PAL 960H) |
||
| Picture quality | 10~100 levels for adjustment | ||
| Mode | Continuous, Event, Schedule | ||
| Record Rate | NTSC | 4 x 960H@30(944x480) 4 x D1@30(704x480) |
|
| PAL | 4 x 960H@25(944x576) 4 x D1@25(704x576) |
||
| Pre-Alarm | 10 SEC | ||
| Post-Alarm | 0 ~ 100 SEC | ||
| Playback | Search Mode | Date/time, Event | |
| Zoom | *Digital ( x2 ~ x5 ) | ||
| Rete | Network Interface | 10/100 Ethernet | |
| Protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE(ADSL), NTP, DDNS | ||
| Application | Windows XP/VISTA/7, Mac OS X | ||
| Remote Software | iWatch DVR 2, IE Browser, iCMS | ||
| Account | 1 Admin + 10 Users | ||
| Mobile Device | Windows Phone, iPhone, iPad, Android | ||
| Backup | Interface | USB 2.0 or SATA | |
| Audio Backup | YES | ||
| Backup Type | Network, ext. USB flash device , SATA optical DVD..etc | ||
| Eventi | Motion Detection | Sensitivity : 100 levels for each channel Area : Programmable individually |
|
| Event Log | Up to the 10000 events (Sensor, Motion, video Loss, power on, remote login, logout, HDD error, HDD full) |
||
| OSD & Controllo DVR |
Multi-Language | Supported | |
| Camera Title | Multi-Language | ||
| USB Mouse | YES | ||
| Touch Panel | Touch Panel LCD Monitor | ||
| Remote Controller | IR Remote Control | ||
| System Upgrade | USB Flash Drive, iWatch DVR 2 | ||
| Pan/Tilt/Zoom Control | Control From RS485 Interface ( Pelco P, Pelco D, Samsung, LG, LiLin ) |
||
Particolarità:
Risoluzione 960H, Visibile da SmartPhone e Tablet
Ideale per:
Punti vendita, strutture alberghiere, uffici, aziende
